JSON (JavaScript Object Notation) is an increasingly popular means of transferring data, comparable to XML. Under the hood, we use it in Icecat Live’s JavaScript applications. The main advantages of JSON are that it’s more efficient in data transfer and compatible with JavaScript applications requiring JSON. This manual explains the Open Icecat JSON product requests (Pull-API) call formats and the output. For Full Icecat JSON, we refer to the general Icecat JSON manual.

Other Integration Methods

If you want to integrate product data without frames conforming to your CSS, then use Icecat Live, which is the modern variant of the good-old URL integration method. If you want full control over the data, make use of the XML or CSV download methods. See the overview of methods and manuals.

Do you want to add product reviews? Then check out our reviews manual. If you’re looking to push brand product data to Icecat, check out the Push-API (JSON) manual. Further, check out the Add-On page for popular platforms already integrating Icecat data.

Important Notes about Icecat JSON

  1. Our JSON interface is relatively new, and certain aspects of our JSON interface might be subject to upgrades.
  2. The current use of JSON is limited to the retrieval of individual product data sheets. For the use of indexes and repositories and more in-depth insight into the Icecat data model, we refer to the XML document.
  3. In the case of Full Icecat data access or retrieval of private brand assets, authorization may be required, and a proper server certificate is to be used. We’re working on simplifying the authorization process in the case of JSON data, making it comparable with the Full Icecat XML data access.
  4. The links and files in the download directories are to be downloaded with scripts (from server to server). If you try to download them via your browser, you may sometimes experience memory problems. This does not mean that the data is not accessible or correctly available on our side. In case you experience any problems, contact us via the contact form.
  5. Some brands have a restrictive syndication policy, in which they allow access to certain digital assets or other product data only to authorized resellers. In general, requesting authorization from brands with which you have established formal relations via the Icecat website is good.
  6. The use of our data APIs, like JSON, requires and enables the user to host data and media assets in its own cloud environment.

Advantages of upgrading to Full Icecat

You can access the JSON interface by all Icecat Data (XML, CSV, or JSON) users with at least an Open Icecat account. Open Icecat users can access the data of the sponsoring brands. Full Icecat users can access the data of all brands in the Icecat database.

However attractive the free Open Icecat database is, the Full-Icecat database still contains many more brands. If you want to include specific brands in free Open Icecat, please, recommend Icecat to your manufacturer contacts.

Read more about the main advantages of Full Icecat over free Open Icecat and see the Icecat Subscription Plans.

If you want to upgrade to Full Icecat, please contact us via the contact form, or click on the “request Full Icecat access” link after the User Login.

Open Icecat Fair Use Policy

The user of Open Icecat product data, in a free Open Icecat subscription or as part of the Full Icecat data, requires to respect the Open Icecat Fair Use Policy.

Explicitly relevant for website development is:

  • to mention explicitly the “Specs Icecat” on all product datasheets, with a link to the Icecat.biz website
  • to include explicitly an “AS IS” disclaimer, an example is here: https://www.icecat.biz/menu/disclaimer/index.html (available in several languages).

International Standards Supported

Apart from JSON, Icecat is compliant with an increasing number of international standards. See here a quick overview of such supported standards.

1. JSON Examples for Instant Use

Before elaborating on the generic JSON structures, it’s good to look into examples. Below are some examples of real-time Icecat JSON product requests based on different product identifiers. You can dynamically construct such links for your applications using your Icecat user name and the product identifiers known by your system.

1. ProductCode & Brand = Brand product code + the brand name:

https://live.icecat.biz/api?UserName=openIcecat-live&Language=en&Brand=hp&ProductCode=RJ459AV

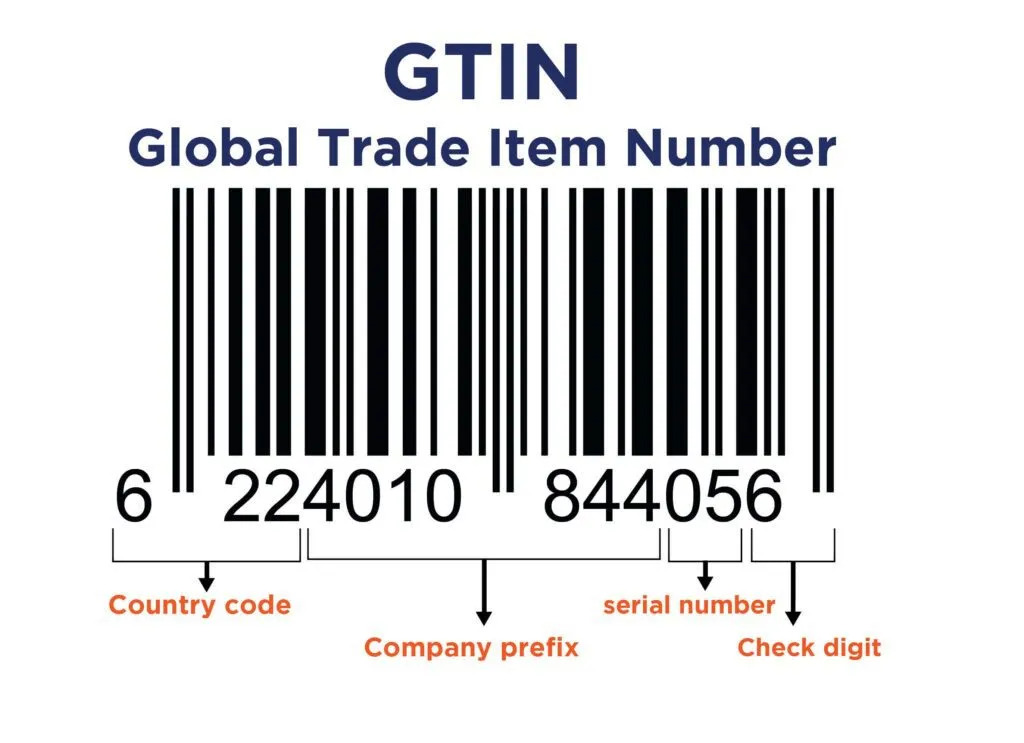

2. GTIN = the GTIN (EAN, UPC or JAN) bar code:

https://live.icecat.biz/api?UserName=openIcecat-live&Language=en&GTIN=0882780751682

The third method will require a bit more complex integration, as you have to read first the Icecat index files to obtain the Icecat product IDs. More information regarding index files can be found here. Recommended in case of large-scale integrations in which you want to predict for which products Icecat has product data or not.

3. icecat_id = Numerical product identifier in Icecat catalog (take from Icecat index files):

https://live.icecat.biz/api?UserName=openIcecat-live&Language=en&icecat_id=1198270

The general URL structure is:
– product code & the brand’s name:

https://live.icecat.biz/api?UserName=&Language=&Content=&Brand=&ProductCode=

– GTIN (EAN, UPC or JAN code):

https://live.icecat.biz/api?UserName=&Language=&Content=&GTIN=

– Icecat ID:

https://live.icecat.biz/api?UserName=&Language=&Content=&icecat_id=

Query parameters:

Query ParameterDescription
ProductCode + Brand or GTINThe unique product identifier: Brand + Manufacturer Part Code or GTIN (EAN, UPC or JAN)

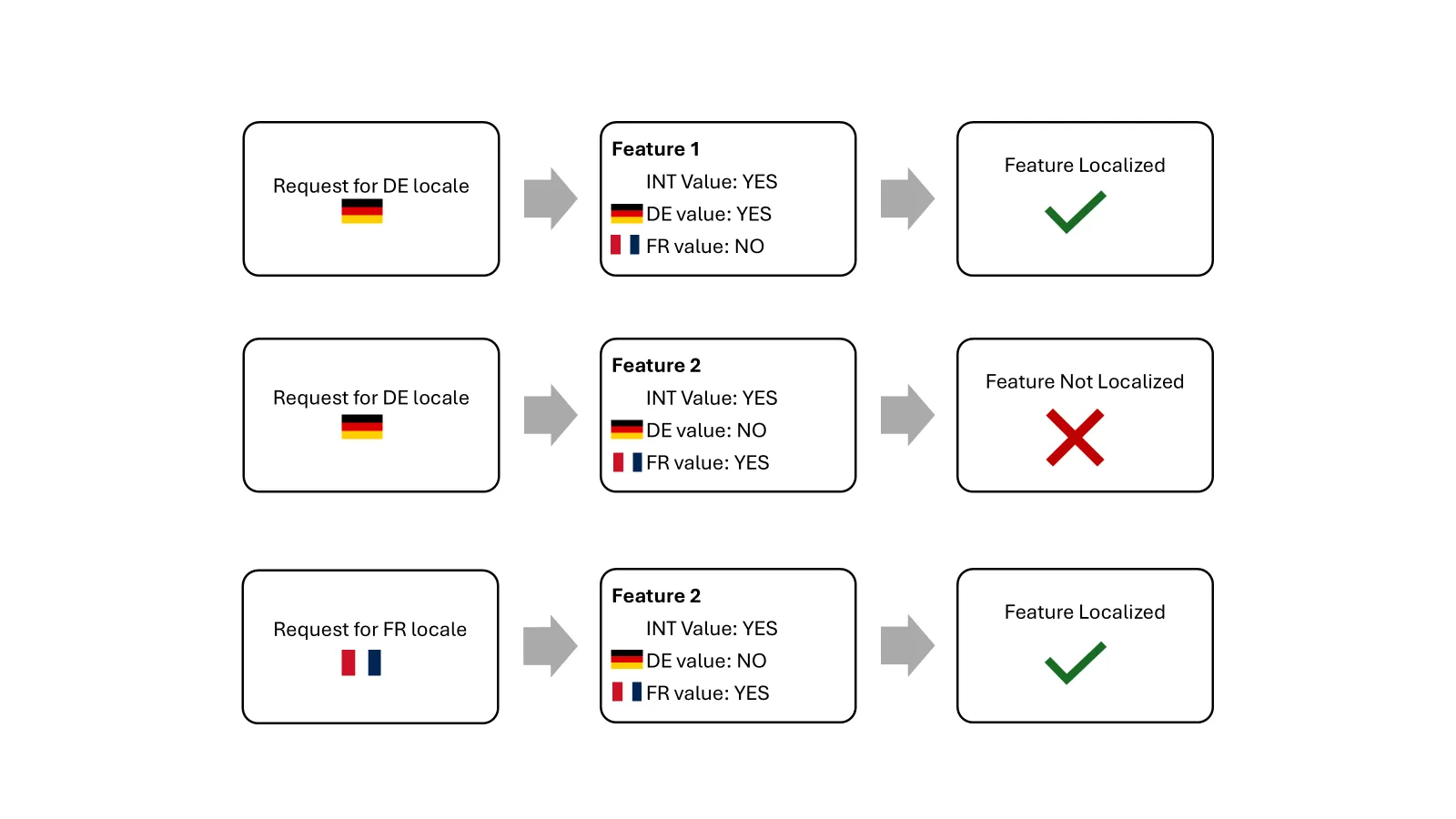

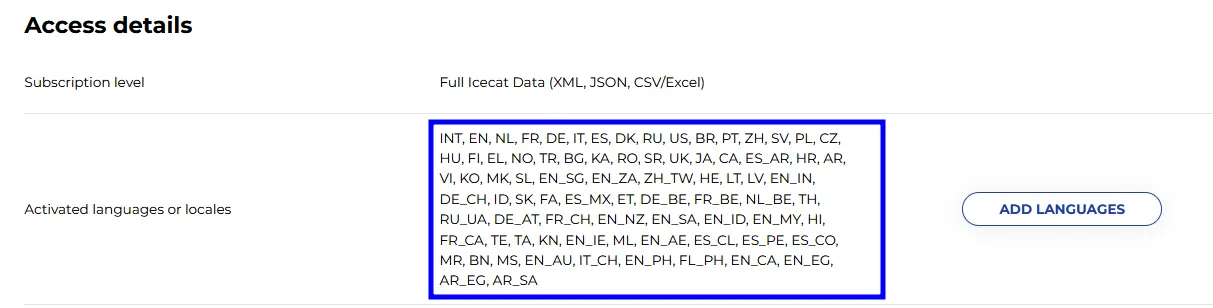

Languagethe language code or locale code (in case of ambiguity) that is used
ContentContent parameter. If the Content parameter is absent in the URL request, the system will return all products content that is available.
UserNamethe Icecat user name as registered and authorized for certain repositories

Generally, the JSON REST service operates with the following Content parameters:

Content parameterDescription
AllAll content of the product

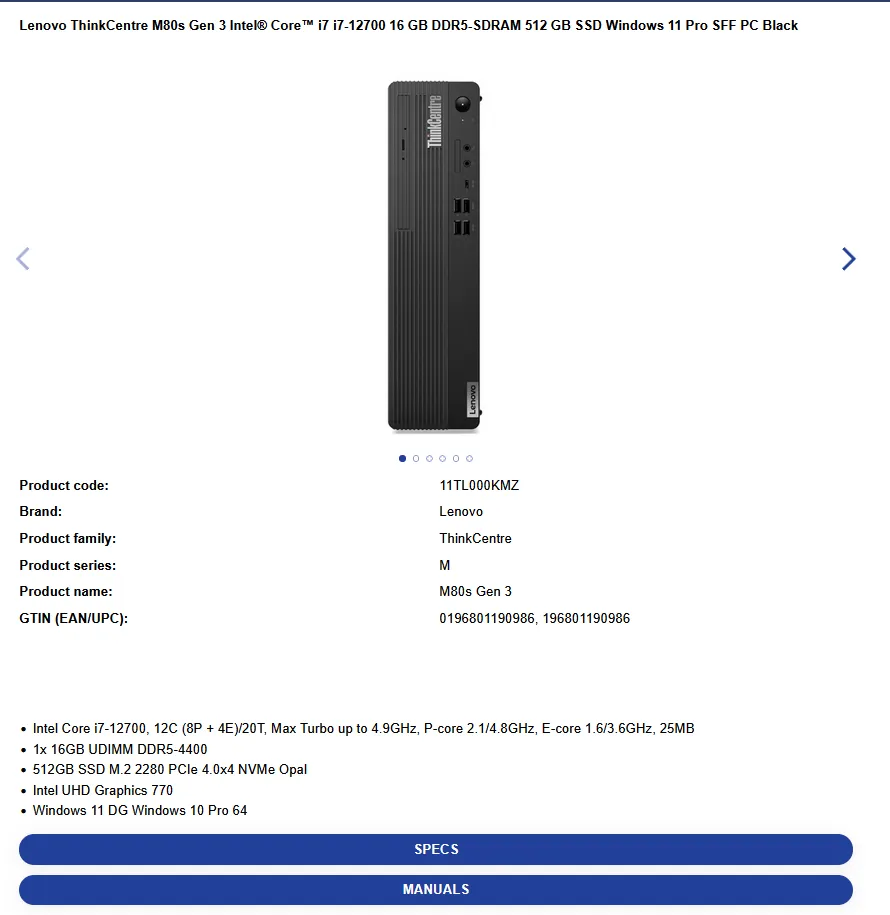

GeneralInfoThe general info of a product, which includes: Product title, Brand, Product name, Brand product code, category, virtual category, product family, product series, GTIN
ImageThe main image of a product (IsMain)

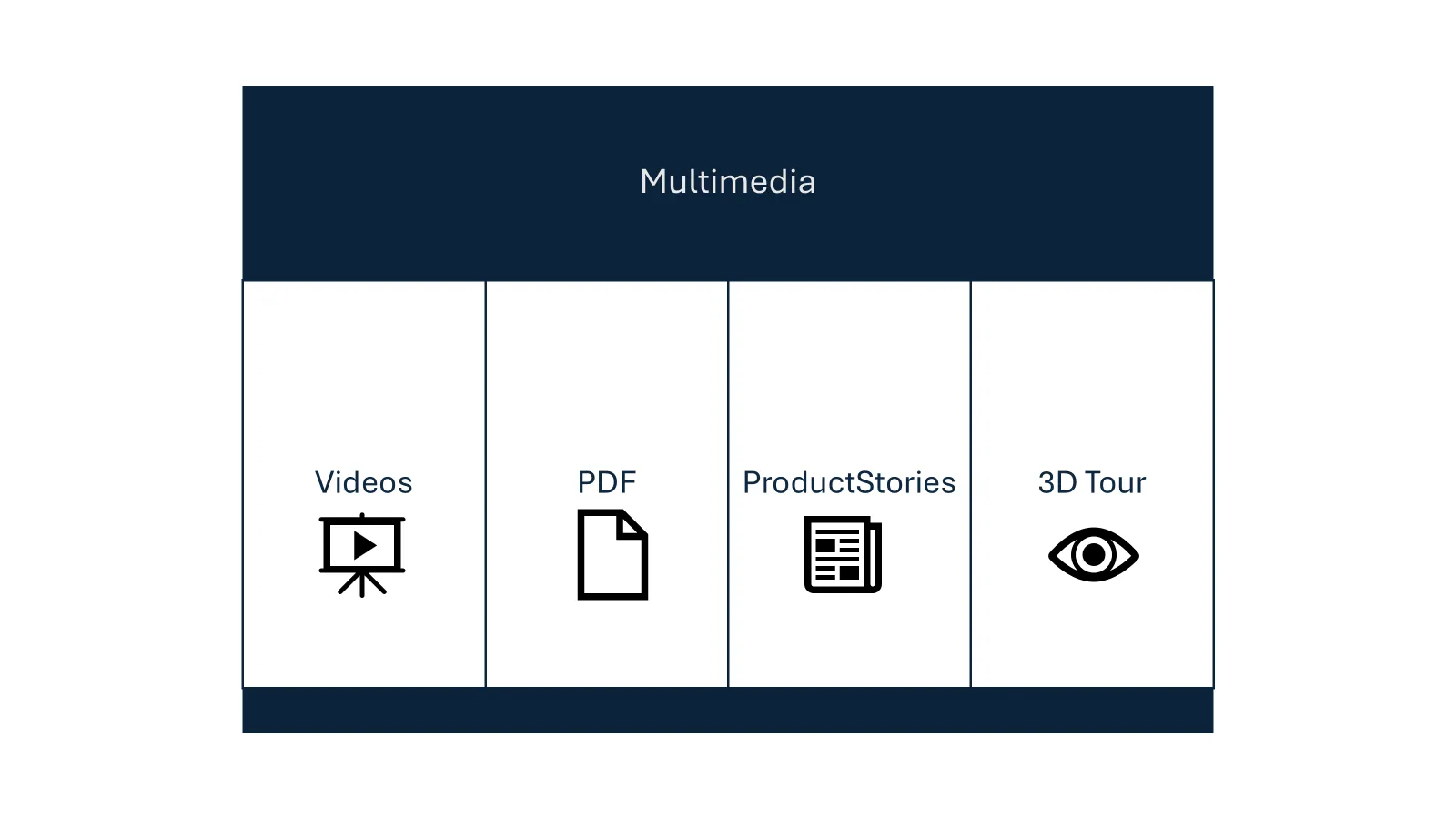

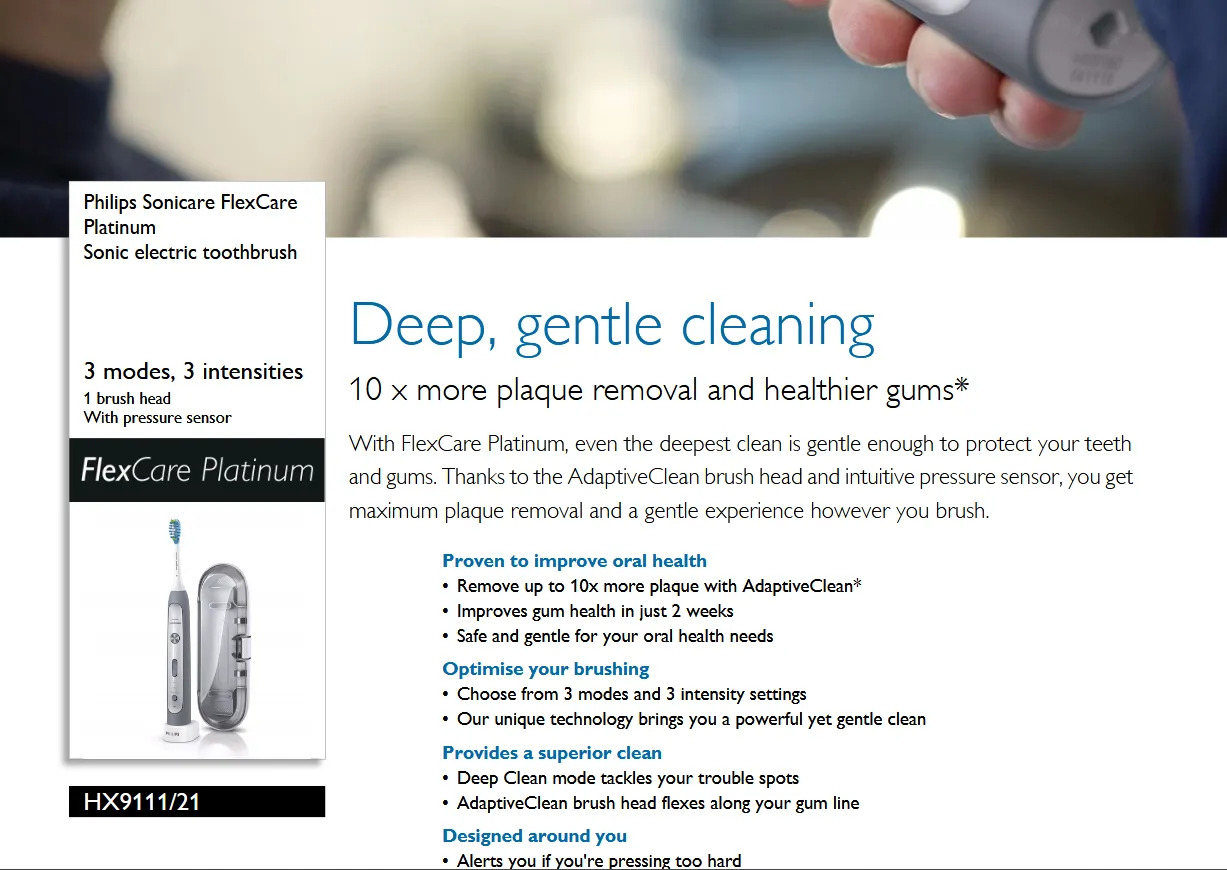

Multimediaall multimedia files related to a product: videos, PDFs, 360o/3D demos, and etc.

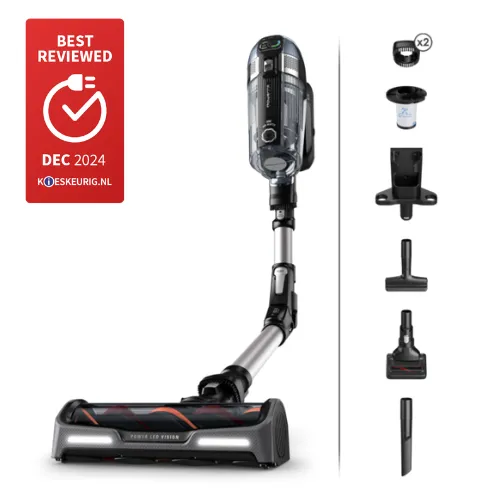

Galleryall gallery images of product

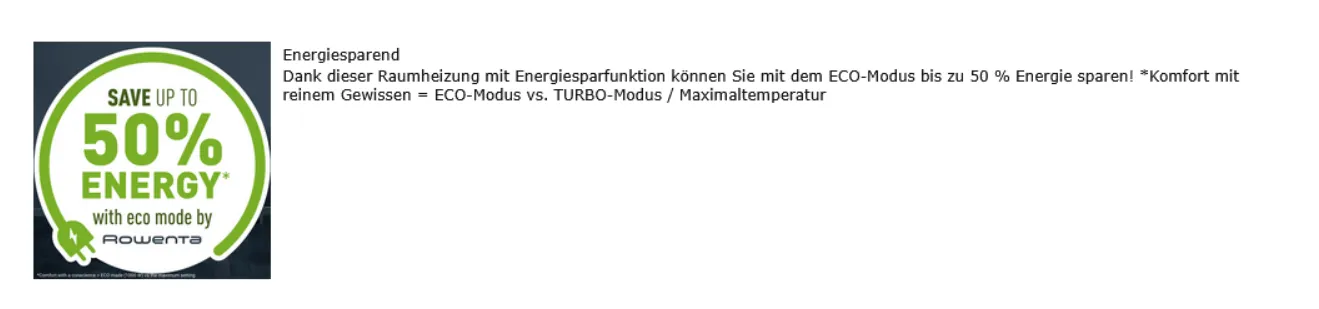

FeatureLogosfeature is enriched with a feature logo, and this logo is provided.
DescriptionThe marketing text and long summary description

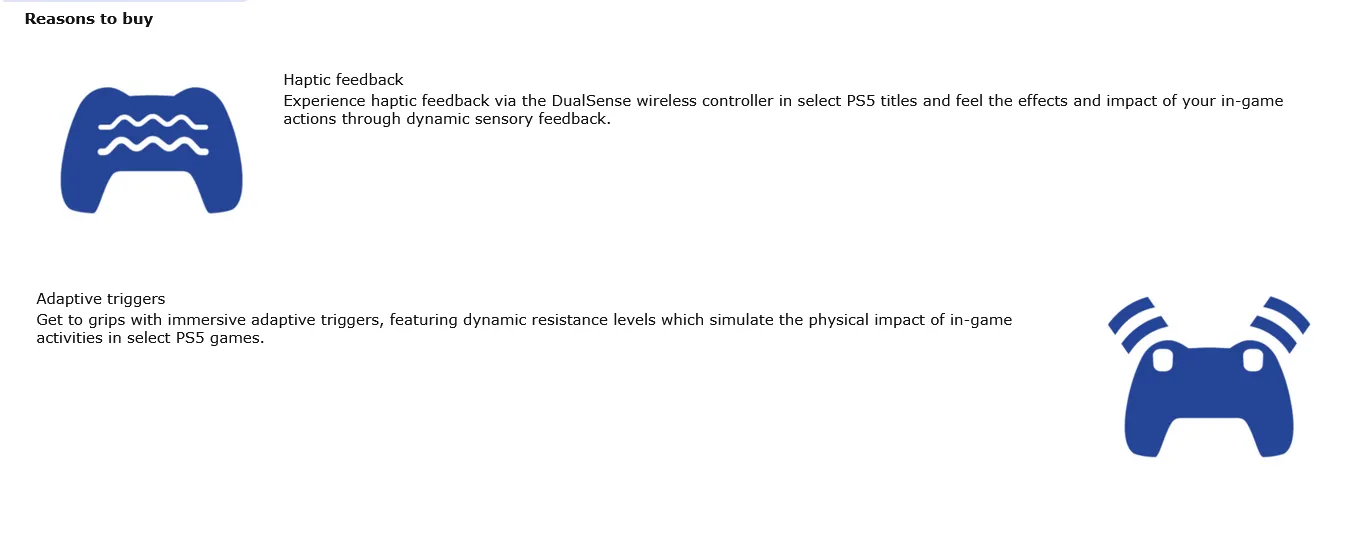

ReasonsToBuyThe main arguments to buy products, formatted as reasons to buy (RTB): RTB image + RTB title + RTB description
ReviewsThe expert or user reviews of a product, which are mainly provided by Testseek.
RelatedThe related products (this data is not used now)
Dictionary (Imports for dictionary: Brand, Сategory, Product_Family, Product_Series, ReasonsToBuy, UserManual, ProductName, Product code)The translation of content elements into the local language

Here is the request structure:

https://live.icecat.biz/api?icecat_id=12462305&UserName=openIcecat-live&Language=EN&Content={content parameter}*

* you should enter the content parameter you need

Examples:

  • With ‘all’ content parameter
    The method GET is to be used. For all content parameter the following is to be entered:
https://live.icecat.biz/api?UserName=openIcecat-live&Language=en&Content=All&Brand=hp&ProductCode=RJ459AV
  • With ‘multimedia’ content parameter
    The method GET is to be used. For multimedia content parameter the following is to be entered:
https://live.icecat.biz/api?UserName=openIcecat-live&Language=en&Content=Multimedia&Brand=hp&ProductCode=RJ459AV

See also Digital Asset Types as Represented in Icecat’s Open Catalog Interfaces.

2. Working with JSON Output

Once you enter any request, for example,
https://live.icecat.biz/api?icecat_id=12462305&UserName=openIcecatlive&Language=EN&Content=Multimedia you can get two results:

  1. the request succeeds
  2. the request fails.

If the request succeeds, the server responds with a 200 OK HTTP status code and the data properties:

  JSON
 ____________________________________________________________________
 200 OK
 {
 message: ‘OK’,
 ‘data’ :
 {
 ‘multimedia’:
 [
 {
 ‘ID’: , // product identifier
 ‘URL’: ,
 ‘Type’: ,
 ‘ContentType’: ,
 ‘KeepAsUrl’: ,
 'Description': ,
 ‘Size’: , (optional) // in bytes
 ‘IsPrivate’: , (optional) // 0/1 or true/false
 ‘Updated’ : , (optional)
 ‘Language’: , // language code or locale code (if ambiguous)
 `isVideo`: // 0/1 or true/false
 },]
 },
 }

If mandatory fields weren’t filled in, the server responds with 404 HTTP status and the corresponding error message:

JSON
 ____________________________________________________________________
 404 Not Found
 {
 Status code:1
 Message: "Error: UserName, lang are mandatory fields"
 }

When content, for example, multimedia object (MMO), is absent and product is sponsored
(Open catalog), the server responds with a 200 OK HTTP status code:


 JSON
 ____________________________________________________________________
 200 OK
 {
 message: ‘OK’,
 ‘data’ :
 {
 'Multimedia': []
 }
 }

If the request is failed due to any reason mentioned above (see ‘Data retrieving algorithm’),
the server responds with 404 HTTP status and with the corresponding error message:

 JSON
 ___________________________________________________________________
 404 Not Found
 {
 message : “Shop The Icecat user is unknown”
 }

This is a live example from our database:

JSON
 ___________________________________________________________________
 message:"OK",
 • data:
 {
 • Multimedia:
 [
 • {
 • IcecatID:"1978657",
 • URL:"https://objects.icecat.biz/objects/12462305_1978657.mp4",
 • Type:"video/mp4",
 • ContentType:"video/mp4",
 • KeepAsUrl:0,
 • Description:"Video",
 • Size:"14623468",
 • IsPrivate:0*,
 • Updated:1426261310,
 • Language:"EN",
 • isVideo:1
 },
 • {
 • IcecatID:"1978658",
 • URL:"https://objects.icecat.biz/objects/12462305_1978658.mp4",
 • Type:"video/mp4",
 • ContentType:"video/mp4",
 • KeepAsUrl:0,
 • Description:"Video",
 • Size:"22487335",
 • IsPrivate:0,
 • Updated:1426261310,
 • Language:"EN",
 • isVideo:1
 },
 • {
 • IcecatID:"1978659",
 • URL:"https://objects.icecat.biz/objects/12462305_1978659.mp4",
 • Type:"video/mp4",
 • ContentType:"video/mp4",
 • KeepAsUrl:0,
 • Description:"Video",
 • Size:"20575036",
 • IsPrivate:0,
 • Updated:1426261310,
 • Language:"EN",
 • isVideo:1
 },
 • {
 • IcecatID:"2142148",
 • URL:"https://objects.icecat.biz/objects/12462305_2319.swf",
 • Type:"360",
 • ContentType:"application/x-shockwave-flash",
 • KeepAsUrl:0,
 • Description:"360",
 • Size:"776006",
 • IsPrivate:0,
 • Updated:1426261310,
 • Language:"EN",
 • isVideo:0
 }
 ],
 • demoAccount:false
 }
 }

In case the user wants to download JSON files of the Full Icecat product(s), he needs to make sure that his IP is whitelisted for the relevant Full Icecat user, and he requests the JSON files using App-Key. IP can be whitelisted by the user himself via the Icecat website. App-Key is the Icecat internal entity that we can provide on-demand for Full Icecat users. Users can request it from the relevant Icecat manager or general contact form

URL structures to request Full Icecat products JSON files are the same as for Open Icecat products described above, the only difference is that in the case of the Full Icecat products, URL structure should end with  &app_key=….

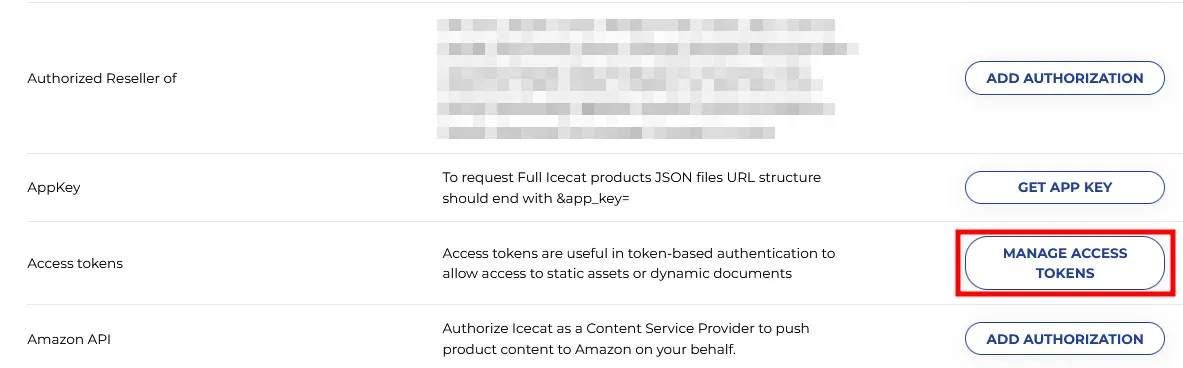

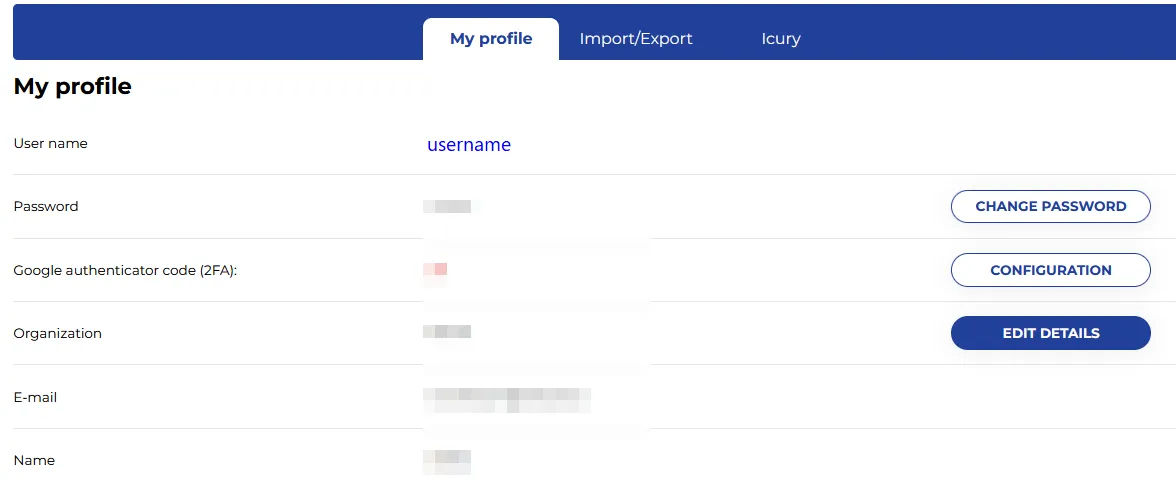

Full Icecat users can get app_key from the Icecat portal on “My Profile”

Note!:  ‘IsPrivate:1′ means that this (asset) belongs to our private database, which is accessible for authorized resellers only. ‘IsPrivate:0’ means that no further authorization is required to access the asset(s) involved.

Possible Error Messages

You can see all the error messages that you can get while using JSON files from Icecat via the following link
